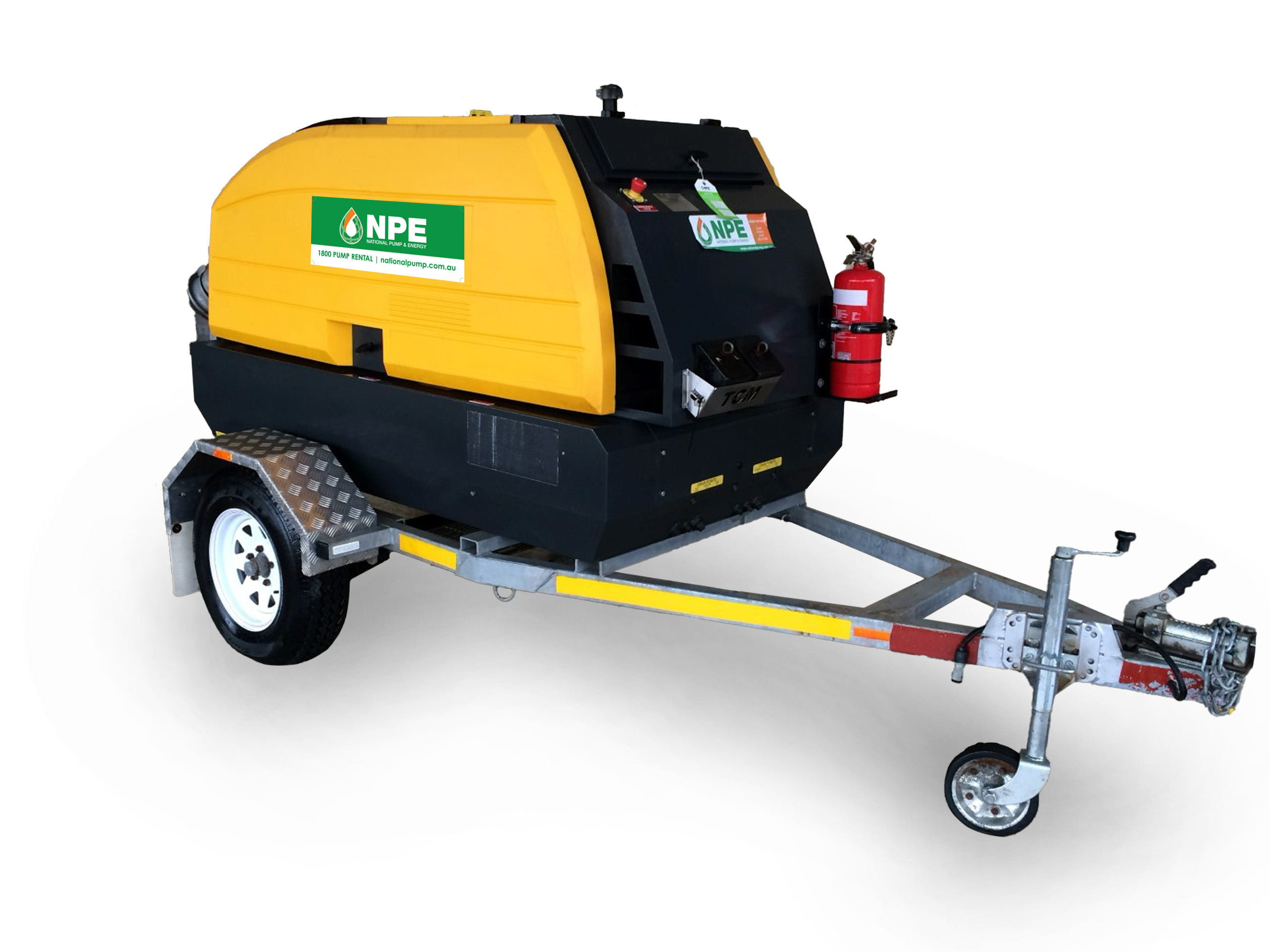

The SPP AUTOPRIME QC200-200mm pump is full enclosed diesel driven pump unit with high efficiency, designer to pump most liquids including sewage and semi-solids. The enclosure provides sound reduction and security for us in noise sensitive areas. Typical uses include removal of ground and rain water from excavations, trenches, footings, manholes and ponds. May also be used for steam and pipe diversions and flood water control, well point dewatering, pipe relining and sludge pumping.
KEY FEATURES
- Bunded unit on optional two-wheel road trailer or skid
- 12 volt battery starting by key switch
- Pump will pass solids up to 75mm diameter and 90mm long
- Reliable double mechanical seals which allow dry running
- Pump can be left running when liquid is exhausted and will prime automatically when liquid is present
- Rugged construction requires minimal operator maintenance
- 65 cfm vacuum pump with coalesced and to filter exhaust air before emission into the atmosphere
- Features efficient 'Smartprime' technology for energy saving and reliability
TECHNICAL SPECIFICATIONS
Flow Rate | 158L/S |
Discharge Head | 37m Max |
Working Pressure | 10bar Max |
Suction Hose Size | 200mm (8in) Diameter |
Discharge Hose Size | 200mm (8in) Diameter |
Max Solids Size | 75mm Diameter x 90mm |
Pump Casing | Cast Iron |
Impeller | SG Iron |
Pump Shaft | Stainless Steel |
Wear Plates | SG Iron |
Suction Sump | Cast Iron |
Shaft Seal | Silicon Carbide / Silicon Carbide |
Elastomer | Viton |
Diesel Engine | CAT C2.2N |
Starting | 12 Volt Battery by Key Switch |
Sound Pressure Level | 65 dBA at 7 Metres |
Fuel Tank Capacity | 220 Litres |
Full Load Consumption | 6.5 Litres Per Hour Average |
Full Load Running Time | 34 Hours |
Chassic Options | Skid Mounted or Pod For Mounting |
Approx Wet Weight | 1500kg on Trailer |
