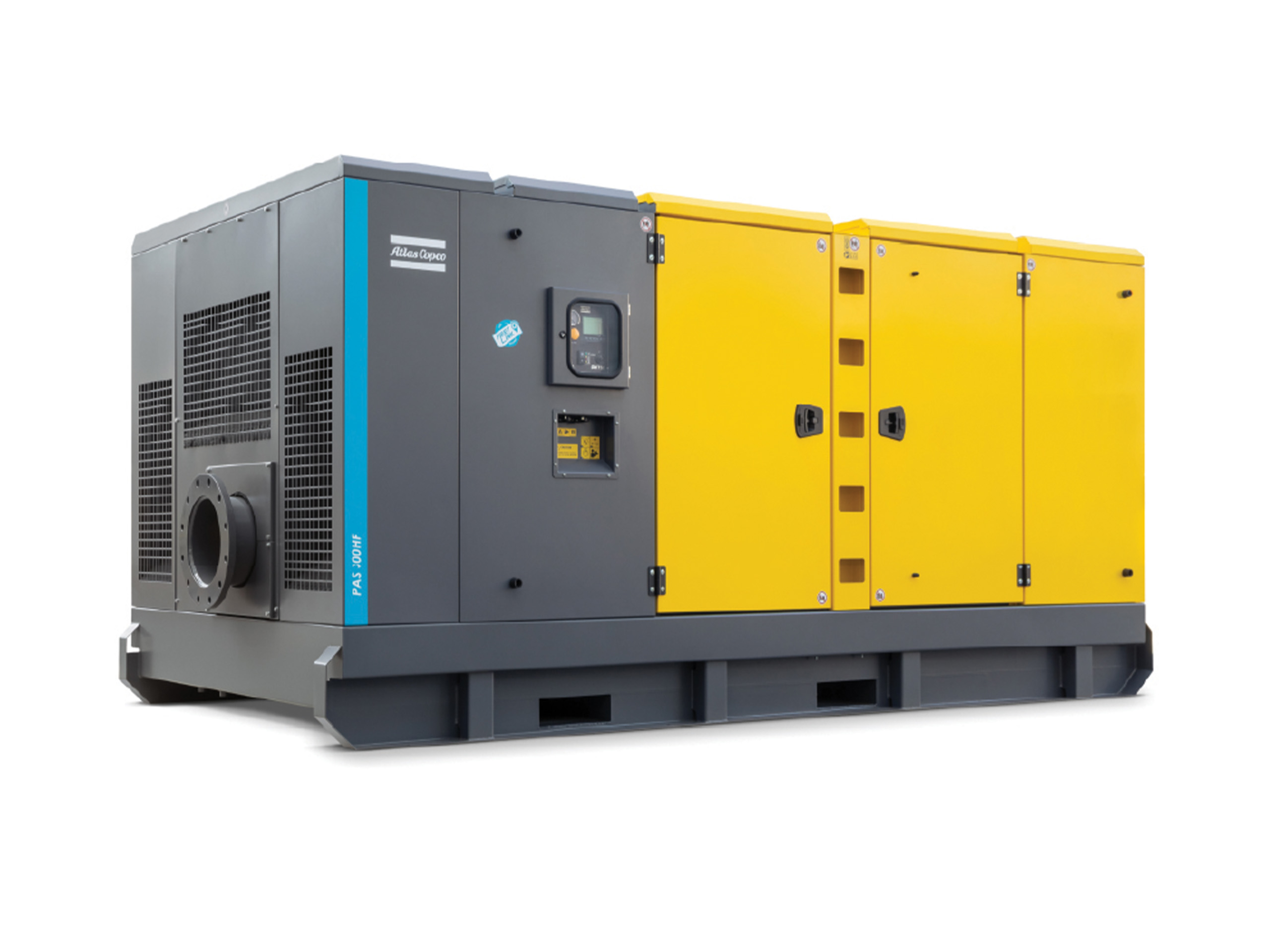

PAS 300HF 440 DAUNL 1 Diesel Silenced Centrifugal Pump Atlas Copco

FLOW RATE
600L/S

Max Head (m)
71

Solid Handling (mm/in)
89/3.5"

Download Spec Sheet

The pump system consists of a centrifugal pump and a vacuum pump - making automatic priming possible. The machine quickly removes the air from the suction pipe and begins to pump, even at suction heights of several metres. The PAS MF series is also appropriate for pumping liquids with suspended solids because of the semi-open impeller.

KEY FEATURES
  • Pump High Efficiency 72% (BEP)
  • Rapid "DRY" Priming - Up to a height of 7.5m
  • High Resistance to Abrasive Liquids and Turbid Sandy Waters
  • Semi-Open Impeller Solids Handling up to 89mm (3.5")
  • Diaphragm Vacuum Pump - Oil Free suitable for Dry Running: No Contamination of the Environment
  • Mechanical Shaft Seal in Oil Bath - It allows the "DRY RUNNING" operation of the pump

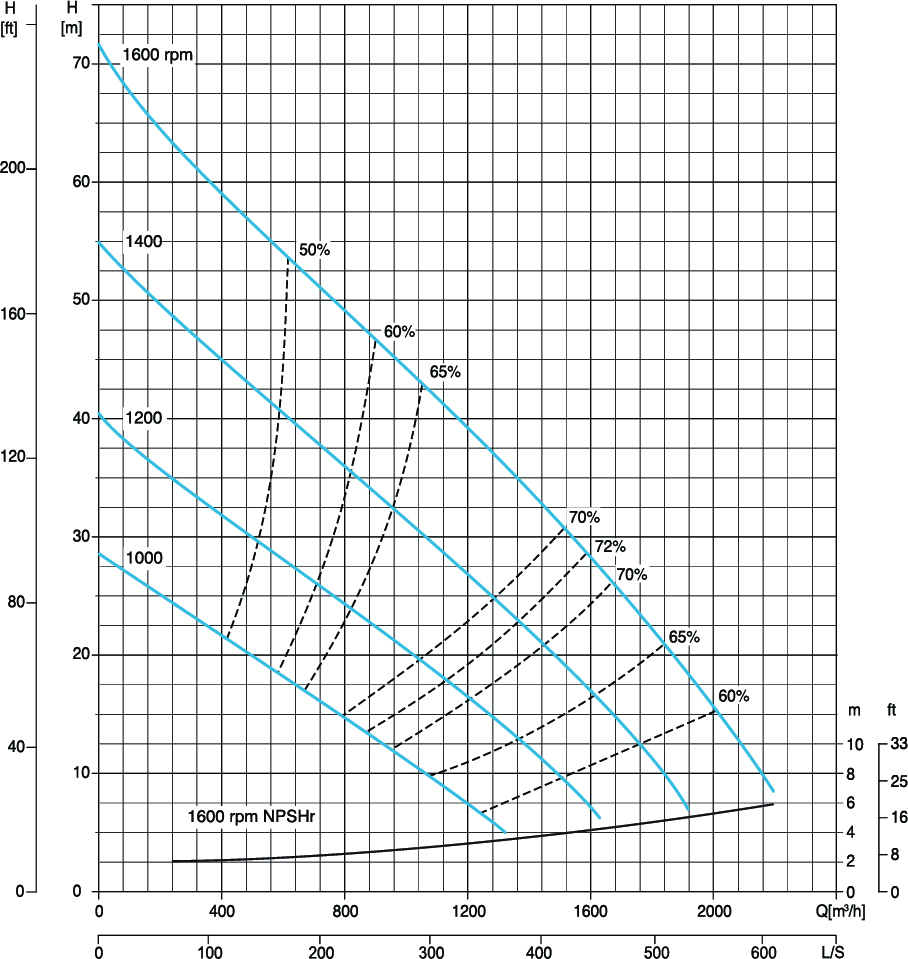

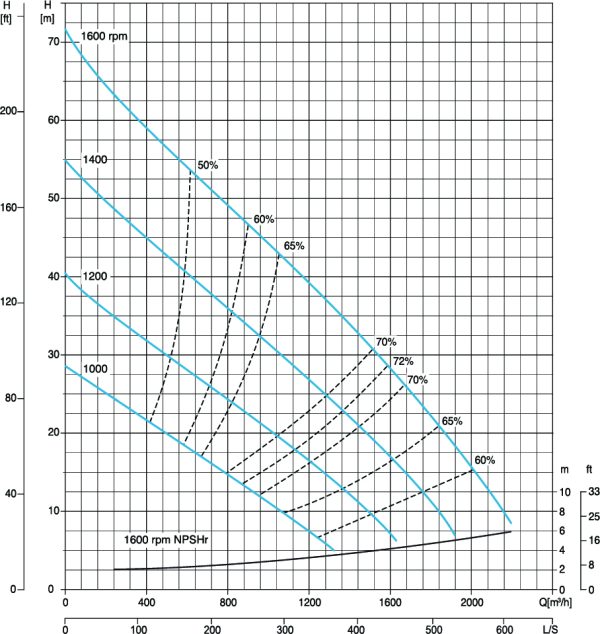

PUMP PERFORMANCE CURVE
