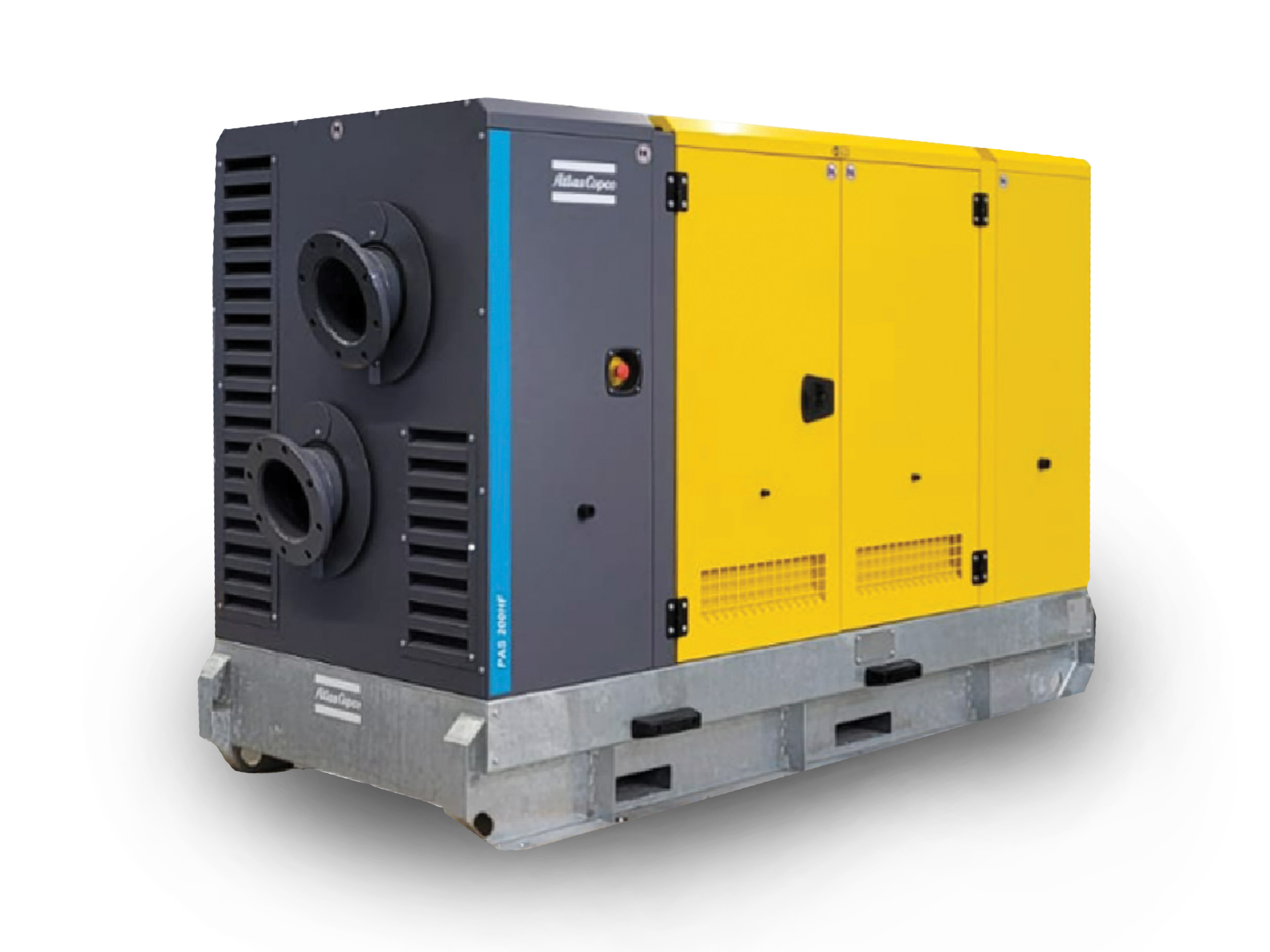

The pump system consists of a centrifugal pump and a vacuum pump - making automatic priming possible. The machine quickly removes the air from the suction pipe and begins to pump, even at suction heights of several metres. The PAS HF series is also appropriate for pumping liquids with suspended solids because of the semi-open impeller.
KEY FEATURES
- Pump High Efficiency 83% (BEP)
- Rapid "DRY" Priming - Up to a Height of 7.5m (24.6ft)
- High Resistance to Abrasive Liquids and Turbid Sandy Waters
- Semi-Open Impeller Solids Handling up to 76mm (3")
- Diaphragm Vacuum Pump - Oil Free Suitable for Dry Running: No Contamination of the Environment

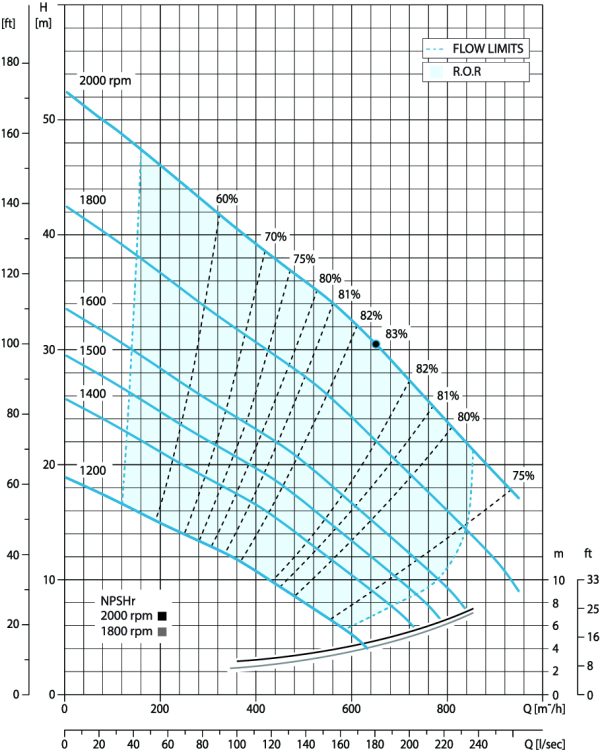

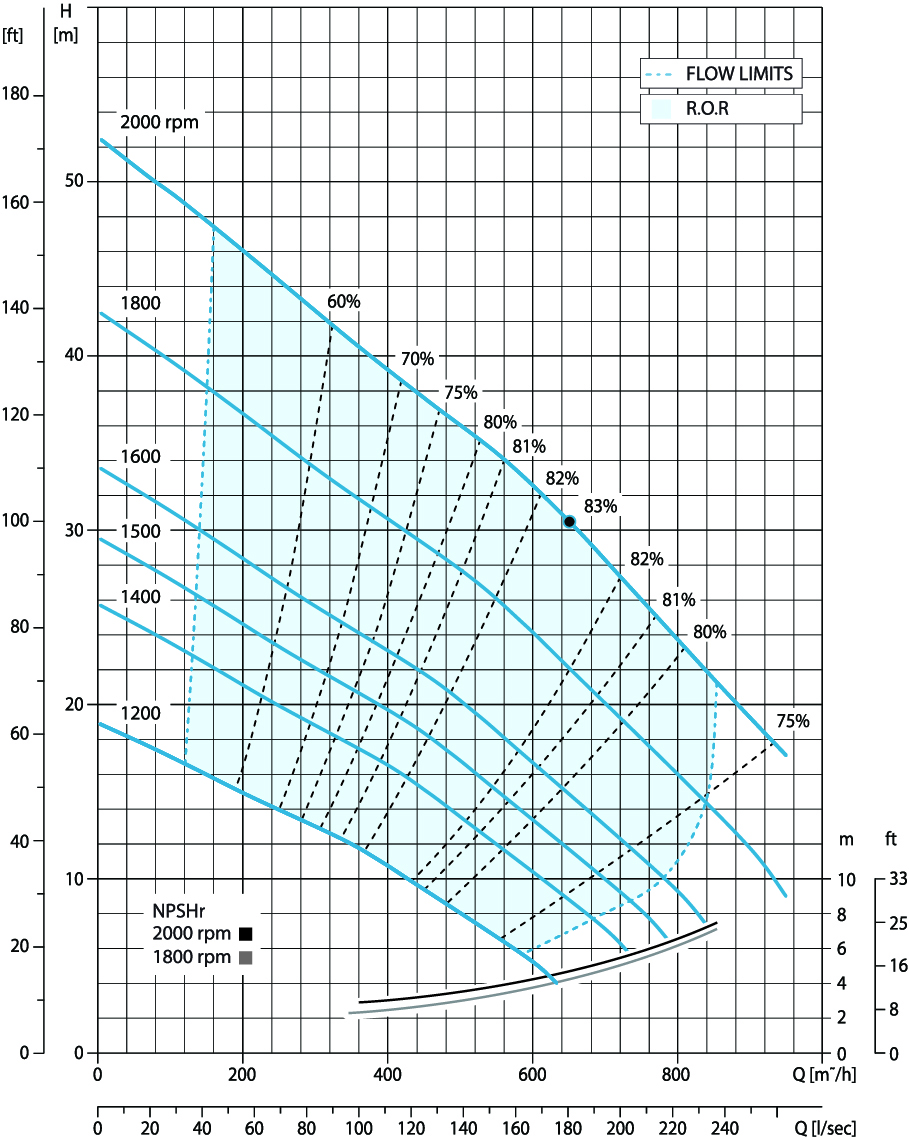

PUMP PERFORMANCE CURVE
| Pump Specifications | |
|---|---|
| Pump Specifications Model | PAS 200HF |
| Pump Specifications Qmax | 264 L/S - 950m3/h |
| Pump Specifications Hmax | 53m |
| Pump Specifications Q Max Eff. | 181L/S - 651 m3/h |
| Pump Specifications Eff. Max | 83% |
| Pump Specifications Suction Port | Flanged - 200 TABLE E (AS 2129) |
| Pump Specifications Delivery Port | Flanged - 200 TABLE E (AS 2129) |
| Pump Specifications Impeller Type | Semi-Open 2 Vane |
| Pump Specifications Solids Handling | 3.0" / 76mm |
| Pump Materials | G11 | F11 |
|---|---|---|
| Pump Materials Casing | G11 EN-GJL-200 Cast Iron | F11 EN-GJL-200 Cast Iron |
| Pump Materials Impeller | G11 EN-GJS-500 Ductile Iron | F11 CF8M Stainless Steel |
| Pump Materials Wear Plates | G11 EN-GJL-200 Cast Iron | F11 CF8M Stainless Steel |
| Pump Materials Number of Plates | G11 1 | F11 1 |
| Pump Materials Shaft | G11 39NiCrMo4 Steel | F11 39NiCrMo4 Steel |
| Pump Materials Mechanical Seal | G11 Tungsten Carbide / Tungsten Carbide | F11 Tungsten Carbide / Tungsten Carbide |
| Pump Materials Elastomers | G11 VITON | F11 VITON |
| Pump Priming System | |
|---|---|
| Pump Priming System Vacuum Pump | V22 |
| Pump Priming System Vacuum Pump Type | Diaphragm |
| Pump Priming System Nominal Air Capacity | 85m/h |
| Pump Priming System Max Vacuum | 0.9 Bar |
| Pump Priming System Separator Type | Atlas Copco |
| Pump Priming System Separator Material | EN-GJL-200 Cast Iron |
| Pump Priming System Drives | Link Belt |
| Pump Engine Specifications | |
|---|---|
| Pump Engine Specifications Make | Deutz |
| Pump Engine Specifications Type | Diesel Turbo Common Rail |
| Pump Engine Specifications Displacement | 3,600cm |
| Pump Engine Specifications No. Cylinders | 4 |
| Pump Engine Specifications Cooling | Liquid with Radiator |
| Pump Engine Specifications RPM Type | Variable |
| Pump Engine Specifications Standard Speed | 2,000RPM |
| Pump Engine Specifications US Emissions | EPA Tier 3 |
| Pump Engine Specifications Starting | Electric |
| Pump Engine Specifications Starting Voltage | 24V |
| Speed (RPM) | 1400 | 1600 | 1800 | 2000 |
|---|---|---|---|---|
| Speed (RPM) Consumption (L/H) | 1400 8.2 | 1600 10.9 | 1800 15.2 | 2000 19.5 |
| Speed (RPM) Power (kW) | 1400 23.5 | 1600 35.5 | 1800 50 | 2000 67.8 |
| Speed (RPM) Power (HP) | 1400 31.5 | 1600 47.8 | 1800 67.1 | 2000 91 |
