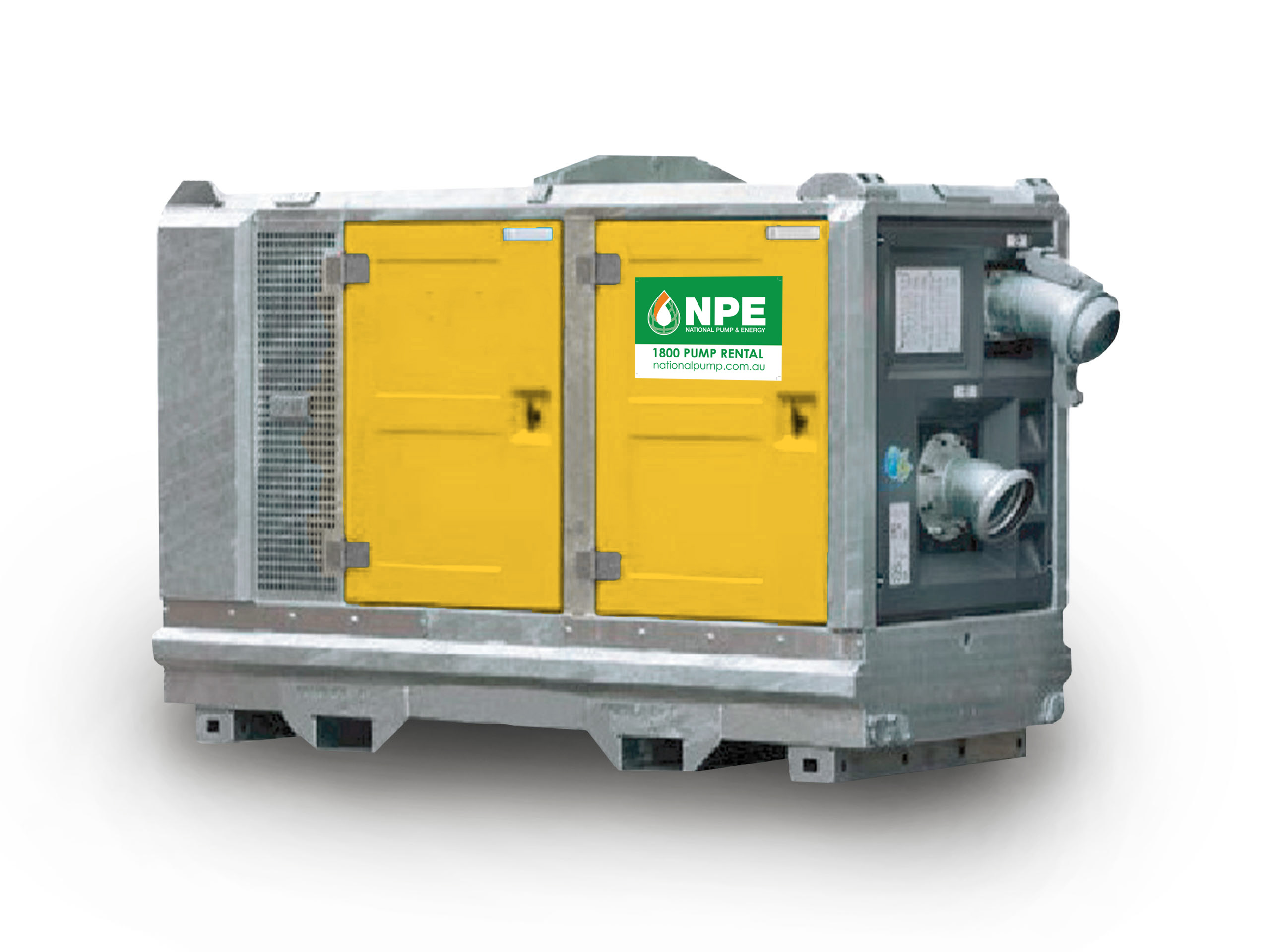

The BA range of pumps has been designed with a clear focus on reliability, efficiency and durability. Featuring a 100% mechanical priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. The heavy build style of both pump and canopy make the BA range perfect for use in the strenuous contractor market.
KEY FEATURES
World-class performance
The BA range is built to be deployed on the most demanding dewatering and sewage bypassing applications. Using high efficiency pumps and state-of-the-art diesel engines, the pumps offer maximum performance at minimal cost, fully in-sync with the company philosophy of “Lowest cost of ownership”.
Sustainability
- High efficiency pumps minimising fuel consumption
- Exhaust system prepared for installation DPF/DOC
- Corrosion free hot dip galvanised canopy
- Corrosion free composite door panels
- 100% Oil-spill free priming system
- Fully bunded unit eliminating fuel/oil spills
Complete package designed & built by BBA Pumps
- Complete in-house design & production
- Over 60 years of experience in the market
- Extensive testing facility in-house
- Contemporary & functional design
- Durable & eco-friendly materials
- Custom builds available
After sales service & product support
- Single supplier for parts, spares & accessories
- Dedicated customer help-desk (24h service)
- Dedicated service department in-house
- Global parts distribution network
- Optional global on-site servicing
- Extensive training options available (technical & commercial), on-site or in-house
TECHNICAL SPECIFICATIONS
Pump Specifications | |
Type | BA150E D285 |
Max. Flow | 475 m3/hour (2091 US GPM) |
Max. Pressure | 35 mwc (115 ft.) |
Connections | DN 150 (6”) |
Solids Handling | 80 mm (3,15”) |
Impeller Type | Semi-open impeller |
Priming System | BBA MP50 |
Engine | Perkins 404D-22T |
Canopy | M10-23 |
Weight (net) | 1600 kg (3527 lb) |
Sound level | 61 dB(A) at 10 m |
BBA AUTO PRIME PUMP | |
---|---|
BBA AUTO PRIME PUMP Pump type | BA150E D285 |
BBA AUTO PRIME PUMP Max. flow | 132L/S |
BBA AUTO PRIME PUMP Max. head | 35 mwc (115 feet) |
BBA AUTO PRIME PUMP Impeller type | Semi open impeller |
BBA AUTO PRIME PUMP Solids handling | 80 mm (3.15 inch) |
BBA AUTO PRIME PUMP Pump casing | Cast iron GG20 |
BBA AUTO PRIME PUMP Impeller | Chrome Moly 42CrM04 |
BBA AUTO PRIME PUMP Wear Plate | Chrome Moly 42CrM04 |
BBA AUTO PRIME PUMP Pump shaft | C45 |
BBA AUTO PRIME PUMP Shaft seal | Mechanical seal |
BBA AUTO PRIME PUMP Seal faces | Tung/Sic |
BBA AUTO PRIME PUMP Seal rubbers | Viton |
BBA PRIMING SYSTEM | |
---|---|
BBA PRIMING SYSTEM Pump type | BBA MP50 Diaphragm pump |
BBA PRIMING SYSTEM Air handling capacity | 50 m3/h (30 CFM) |
BBA PRIMING SYSTEM Max. vacuum | 8.5 m (29 inHg) |
BBA PRIMING SYSTEM Drive | Toothed belt (continuous drive) |
BBA PRIMING SYSTEM Start/stop | Fully automatic |
BBA PRIMING SYSTEM Float box | Aluminium |
BBA PRIMING SYSTEM Non return valve | Cast iron GG25 |
BBA PRIMING SYSTEM Check valve disc | Buna-N |
ENGINE SPECIFICATIONS | |
---|---|
ENGINE SPECIFICATIONS Engine Brand | Perkins |
ENGINE SPECIFICATIONS Engine type | 404D-22T |
ENGINE SPECIFICATIONS Flywheel power | 36.4 kW (49 Hp) |
ENGINE SPECIFICATIONS Max. engine speed | 1500 – 1750 RPM |
ENGINE SPECIFICATIONS Fuel consumption | 237 g/kWh |
ENGINE SPECIFICATIONS Displacement | 2.2 l |
ENGINE SPECIFICATIONS Number of cylinders | 4 |
ENGINE SPECIFICATIONS Cooling system | Water cooled |
ENGINE SPECIFICATIONS Exhaust emission EU | Stage IIIA |
ENGINE SPECIFICATIONS Exhaust emission US | Tier 3 |
BBA DASHBOARD LC20 SPECIFICATIONS |
---|
BBA DASHBOARD LC20 SPECIFICATIONS Auto start/stop system |
BBA DASHBOARD LC20 SPECIFICATIONS Two float switches included (10m cable) |
BBA DASHBOARD LC20 SPECIFICATIONS Switch Manual-0-Auto |
BBA DASHBOARD LC20 SPECIFICATIONS Tachometer |
BBA DASHBOARD LC20 SPECIFICATIONS Hour counter |
BBA DASHBOARD LC20 SPECIFICATIONS Warning lights “oil and engine temperature” |
BBA DASHBOARD LC20 SPECIFICATIONS Warning light “auto stand-by” |
