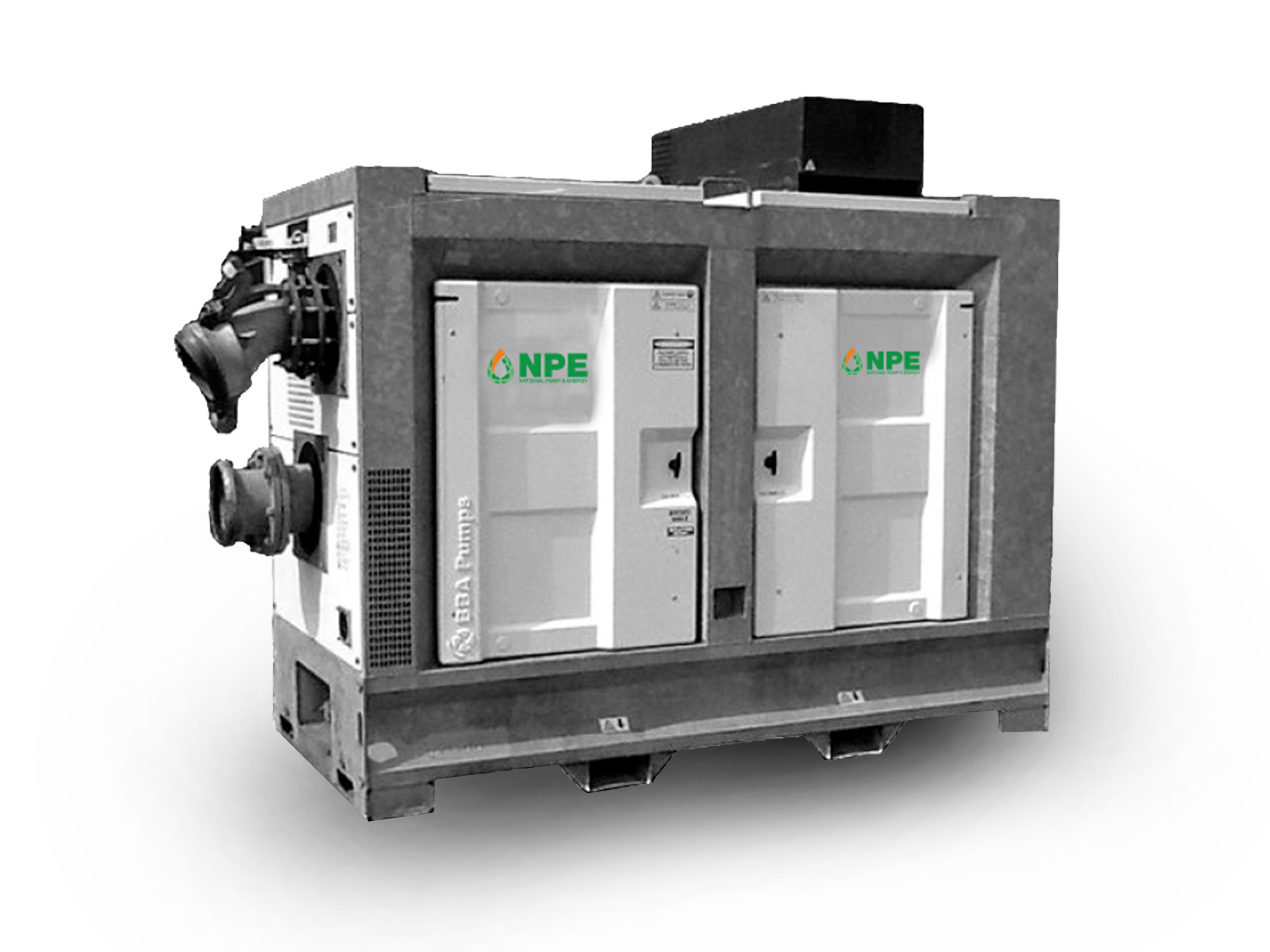

National Pump & Energy offers a range of diesel pumps developed and manufactured to meet Australian and European Standards and are available for hire and sale Australia wide. The Automatic Priming Pump BA 200 is ideal for sump pumping or bypass situations with a fully automated capability. Through the use of in built flotation switches ensuring you stay in control of any water issues on your project. As a compact silenced unit with a fully bunded skid base the BA Series Pump is a highly versatile solution and is available for immediate hire.
KEY FEATURES
- 4 Easy-access doors (lockable)
- High efficiency pumps minimising fuel consumption
- Fully bunded unit eliminating fuel/oil spills at all times
- Low oil pressure shut down
- High temperature shut down
- Corrosion free composite door panels and powder coated plating
- Emergency stop button
- Fully automated float system
- Serviced and maintained by knowledgeable staff qualified to the highest industry standard
- 100% Oil-spill free priming system
- Corrosion free hot dip galvanised canopy
PUMP PERFORMANCE CURVE
| PUMP SPECIFICATIONS | |
|---|---|
| PUMP SPECIFICATIONS Dimensions (mm) | 2500L x 1250W x 2000H |
| PUMP SPECIFICATIONS Weight (net) | 2600KG |
| PUMP SPECIFICATIONS Sound Level | 75 dB (A) at 10m |
| PUMP SPECIFICATIONS Lifting Point | Fitted with single lifting point |
| PUMP SPECIFICATIONS Max. Flow | 205L/s |
| PUMP SPECIFICATIONS Max. Vacuum | 8m |
| PUMP SPECIFICATIONS Max. Vacuum | 530 kPa (53m) |
| PUMP SPECIFICATIONS Connections | 200mm |
| PUMP SPECIFICATIONS Solids Handling | 80mm |
| PUMP SPECIFICATIONS Impeller Type | Semi Open Impeller |
| PUMP SPECIFICATIONS Priming System | Auto Diaphragm |
| PUMP SPECIFICATIONS Canopy | Fully Enclosed & Silenced |
| ENGINE SPECIFICATIONS | |
|---|---|
| ENGINE SPECIFICATIONS Manufacturer | John Deere |
| ENGINE SPECIFICATIONS Engine Type | 4045HF285 |
| ENGINE SPECIFICATIONS Max. Engine Spreed | 2000 RPM |
| ENGINE SPECIFICATIONS Fuel Consumption | 12L/h @ 1500 RPM |
| ENGINE SPECIFICATIONS Cooling Systems | 300L |
| ENGINE SPECIFICATIONS Fuel Capacity | Water Cooled |
