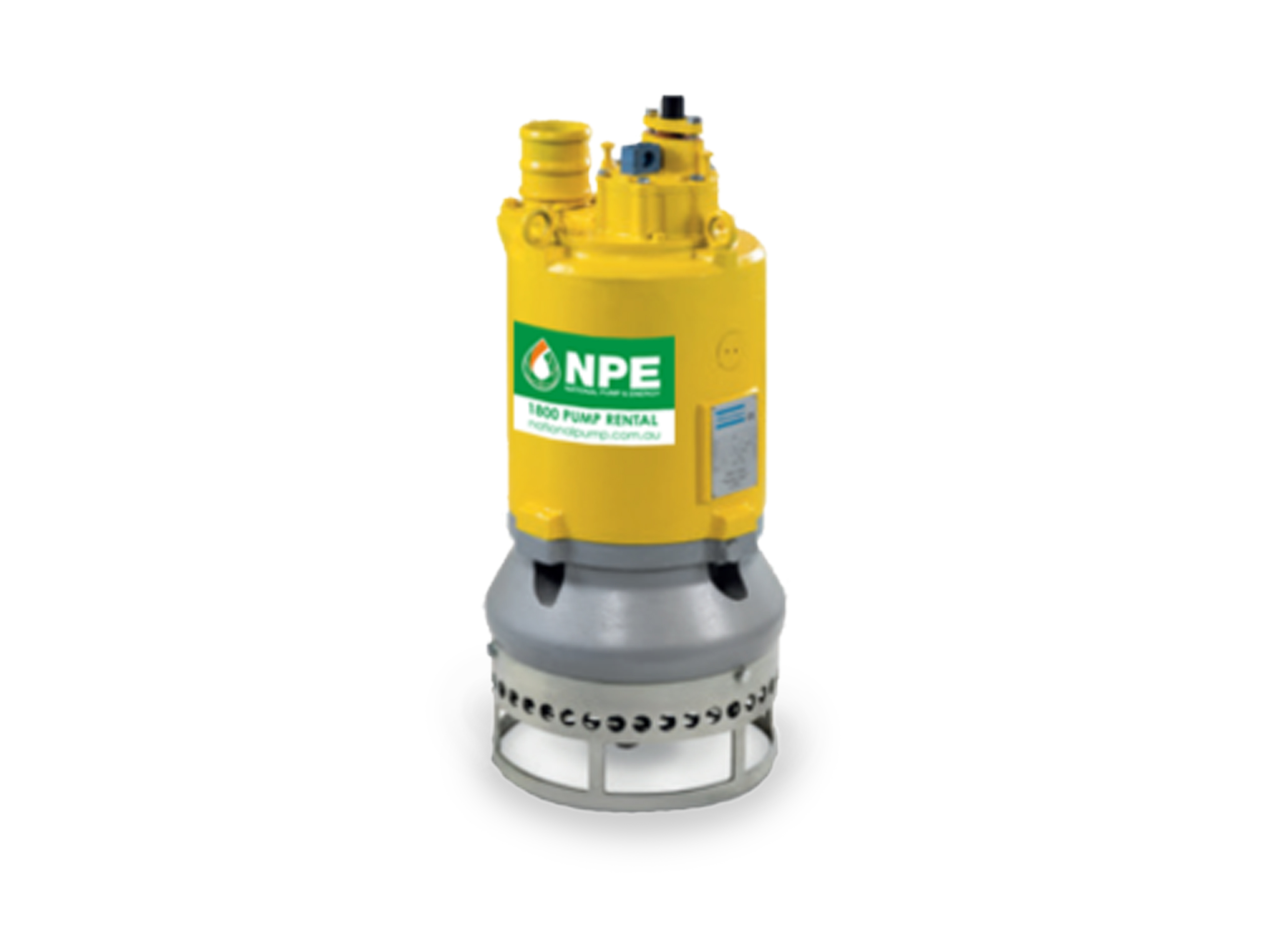

The WEDA slurry pumps are the toughest and have the largest apertures to facilitate handling of slurry with the most challenging solids. These pumps are specially designed to operate in quarries, dredging and settling ponds, dealing with abrasive media with high solids content.
| Pump Specification Data | |
|---|---|
| Pump Specification Data Installation | Portable |
| Pump Specification Data Discharge Connection | 100DN/ 4 in hose/NPT |
| Pump Specification Data Hydraulic Range | N - normal head |
| Pump Specification Data Solid Hanlding | Max. solids 25 mm 1 in |
| Pump Specification Data Liquid Temperature | max 35°C (95°F) , standard |
| Pump Specification Data pH of the Pumped Liquid | 4-10 |
| Pump Specification Data Number of poles | 4 |
| Pump Specification Data Insulation Class | H |
| Pump Specification Data Protection Class | IP68 |
| Pump Specification Data Thermal Contacts | 110°C (230°F) |
| Pump Specification Data Cable | H07RN-F 4G10/SOOW 4xAWG6 |
| Pump Specification Data Cable Length | 20 m (65 ft) |
| Pump Specification Data Outer Casing | CI Alloy |
| Pump Specification Data Impeller | Cr Alloy CI |
| Pump Specification Data Wear Parts | Cr Alloy CI |
| Pump Specification Data Stator Housing | CI Alloy |
| Pump Specification Data Strainer | Steel |
| Pump Specification Data O-rings | Stainless Steel |
| Pump Specification Data Discharge Connection | Viton |
| Pump Specification Data Bearings | Steel |
| Pump Specification Data Motor Side Seals | Heavy Duty Bearings |
| Pump Specification Data Impeller Side Seals | 1 mechanical seal (silicon carbide in oil bath) + 4 lip seal (2 BUNA + 2 TPU) |
| Pump Specification Data Discharge | Hose |
| Pump Specification Data Start Type | Direct-on-line |
| Pump Dimensions | |
|---|---|
| Pump Dimensions Weight (Excl. Cable) | 260kg |
| Pump Dimensions Height | 914mm |
| Pump Dimensions Width | 435mm |
| Pump Dimensions Diameter | 413mm |

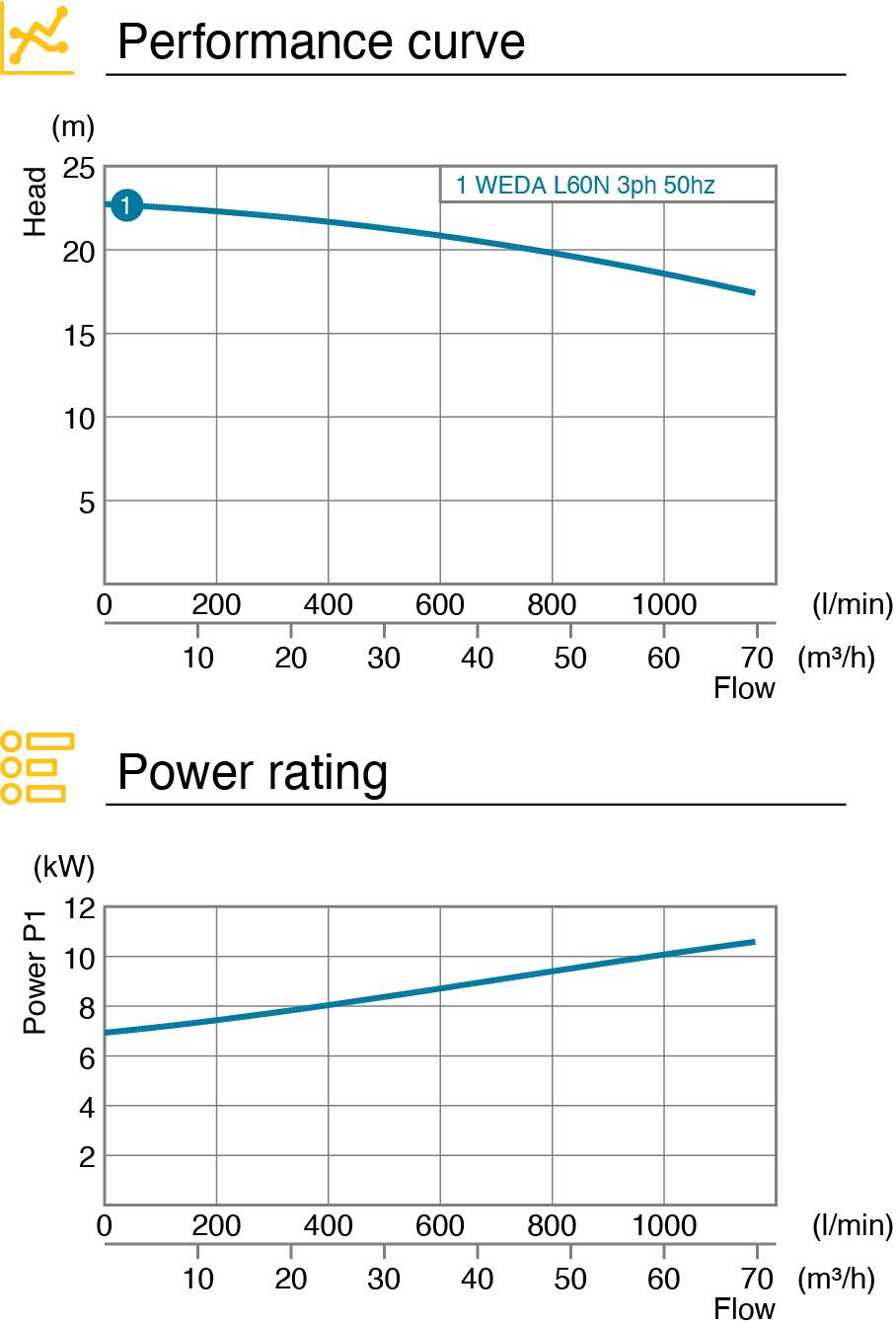

| Power Rating | 3pH |
|---|---|
| Power Rating Power P1 | 3pH 10.4kW |
| Power Rating Power P2 | 3pH 9kW |
| Power Rating 230V | 3pH 32.7A |
| Power Rating 400V | 3pH 18.8A |
| Power Rating Shaft Speed | 3pH 1450RPM |
