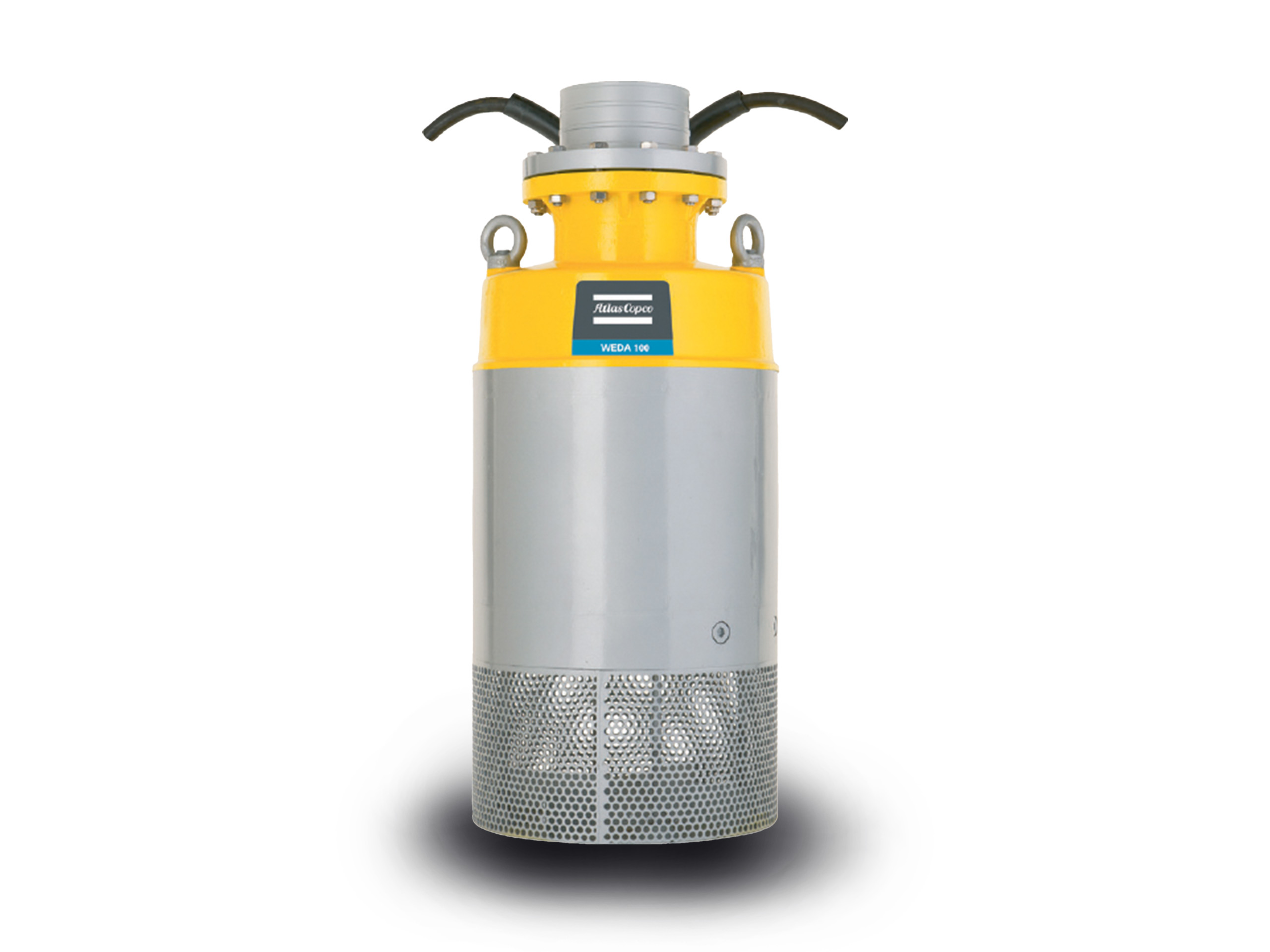

Pump Specification Data | WEDA D100 |
---|---|
Installation | Portable Drainage pump |
Discharge connection | 10” std for WEDA D100N, hose or NPT |
Hydralic range | N - Normal Head |
Solid handling | Strainer hole dimension 12 mm |
Liquid Temperature | max 40°C (104°F), standard |
Depth of immersion | max 20 m (65 feet) |
Liquid density | 1100 kg/m3 (9.2 lb. per US gal.) |
pH of the pumped liquid | pH 5–8 |
Frequency | 50 Hz |
Insulation class | Class F (+155C), IEC 85 |
Protection class | IP68 |
Voltage variation | max ± 5% of nominal voltage |
Voltage imbalance | max 2% - between phases |
Max start stop | max 30 - No. of starts/hour |
Thermal contacts | 140°C (284°F) |
Cable | Oil and wear resistant rubber cable type HO7RN-F |
Power cable | 20 m, 2 x 4G25 mm² |
Signal cable | 21 m, 3G1.5 mm² for thermal switches |
Outer casing | Galvanized steel |
Impeller | Cr-alloyed white cast iron, 55±5 HRC |
Wear parts | Nitrile rubber diffuser center; cast-iron diffuser |
Stator housing | Aluminum |
Strainer | Stainless steel |
Shaft | Stainless steel |
O-rings | Nitrile rubber |
Discharge connection | Aluminum |
Bearings | Upper: Ball bearings with C3 clearance |
Bearings | Lower: Double ball bearings with C3 clearance |
Mechanical seal | Instant Service Pack contains below in an oil bath |
Mechanical seal | Primary seal: Tungsten carbide against silicon carbide |
Mechanical seal | Secondary seal: Carbon against silicon carbide |
Quick couplings | - |
Start type | External Y/D or external DOL starter |
Accessories | Float switch |
Accessories | Zinc anodes |
Accessories | Epoxy coating, Starter box |
Pump Dimensions | Unit | Normal Head |
---|---|---|
Weight | Kg | 510 |
Height | mm | 1412 |
Width | mm | 650 |
Diameter | mm | 600 |
Pump Power Rating |
---|
Rated Power (P2) 54kW |
Max. Power Input 65kW |
Motor Data | Rated Current A |
---|---|
400V | 110 |
500V | 80 |
