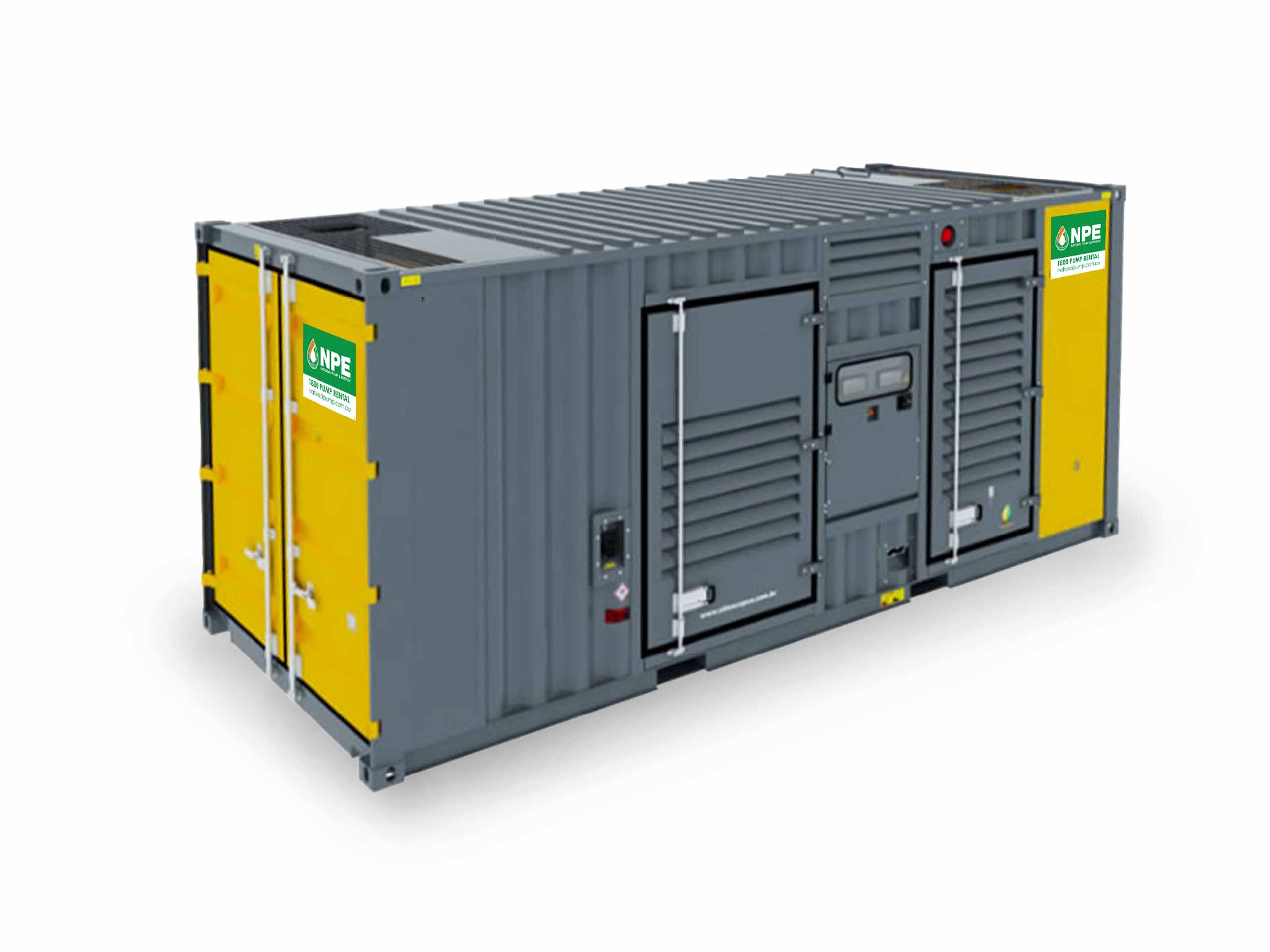

QAC 1100 TwinPower Sd Generator
Applying insights gained from industrial customers, rental companies, public utilities and other end users QAS generators are designed to withstand the most demanding on-site conditions and environments.
Considering their impressive performance at full capacity, the QAS line of generators includes excellent features for noise reduction and environmental protection.
QAS generators are purpose built for quick, easy and safe transport and on-site handling. Built to last, a QAS generator will provide years of dependable service for your electrical power generation needs. All members of the widely appreciated QAS family are intelligent multi-task units managing to power a wide range of electrical equipment in different applications.
Their superior component configuration offers a wide range of control modules, electrical settings and mechanical options, in order to guarantee superior quality at efficient operating costs.
Conceived for 100% prime power operation in the most severe outdoor conditions, ready to work in sensitive areas, QAS generators are designed and configured for safe operation with minimal downtime under any circumstance.
Key Features
- Carefully selected components, accurately developed and tested configuration
- Superior standard configuration and extensive option list
- 500 hours service interval and superior accessibility to all service points
- Compact and safe concept and sturdy design
- Designed and built to last
PERFORMANCE DATA
| Generator | QAC1100 TW (50Hz) | QAC 1100 TW (60Hz) | ||
|---|---|---|---|---|
| Rated Speed | rpm | 1500 | 1800 | |
| Rated Power Factor (lagging) | 0.8 | 0.8 | ||
| Rated Prime Power, PRP | kVA | 1000 | 1000 | |
| Rated Prime Power, PRP | kW | 800 | 800 | |
| Limited Time Power, ESP (Standby) | kVA | 220V & 440V / (400V - 50Hz) | 1062 | 1100 |
| Limited Time Power, ESP (Standby) | kVA | 380V | - | 1060 |
| Limited Time Power, ESP (Standby) | kW | 220V & 440V / (400V - 50Hz) | 849.6 | 880 |
| Limited Time Power, ESP (Standby) | kW | 380V | - | 848 |
| Continuous Operation Power, COP | ||||
| (Continuous)" | kVA | 220V & 440V / (400V - 50Hz) | 800 | 800 |
| Continuous Operation Power, COP | ||||
| (Continuous)" | kVA | 380V | - | 800 |
| Continuous Operation Power, COP | ||||
| (Continuous)" | kW | 220V & 440V / (400V - 50Hz) | 640 | 640 |
| Continuous Operation Power, COP | ||||
| (Continuous)" | kW | 380V | - | 640 |
| Rated voltage (3ph. line to line) | V | 400 | 220 & 440 / 380 | |
| Rated voltage (1ph. line to neutral) | V | 231 | 127 & 254 / 219 | |
| Rated current (STBy) - (440V) / | ||||
| (400V – 50Hz)" | A | 1532.9 | 1443.3 | |
| Rated current (STBy) - (380V) | A | - | 1610.5 | |
| Rated current (STBy) - (220V) | A | - | 2886.8 | |
| Maximum sound power level (LWA) complies with 2000/14/EC | dB(A) | 103 | 103 | |
| Maximum sound pressure level (LPA) at 7 m | dB(A) | 73 | 73 | |
| Coupling engine/alternator | Direct | Direct | ||
| Fuel Autonomy at full load | h | 7.8 | 8 | |
| Single step load capability (Acc ISO | ||||
| 8528)" | % | 55 | 70 | |
| Frequency drop (lower than % isochronous) | % | <10 | <10 | |
| Maxim oil consumption 100% load | L/H | 0.606 | 0.592 |
