Cost of operation is one of the biggest concerns contractors have regarding their equipment. The BBA piston pump for well pointing, series PT is the solution.
Extremely efficient and packed with user benefits, the PT pumps are capable of operating for very long periods of time on a small amount of fuel. Plus, the pumps provide high air handling necessary on the toughest well point and sock applications.

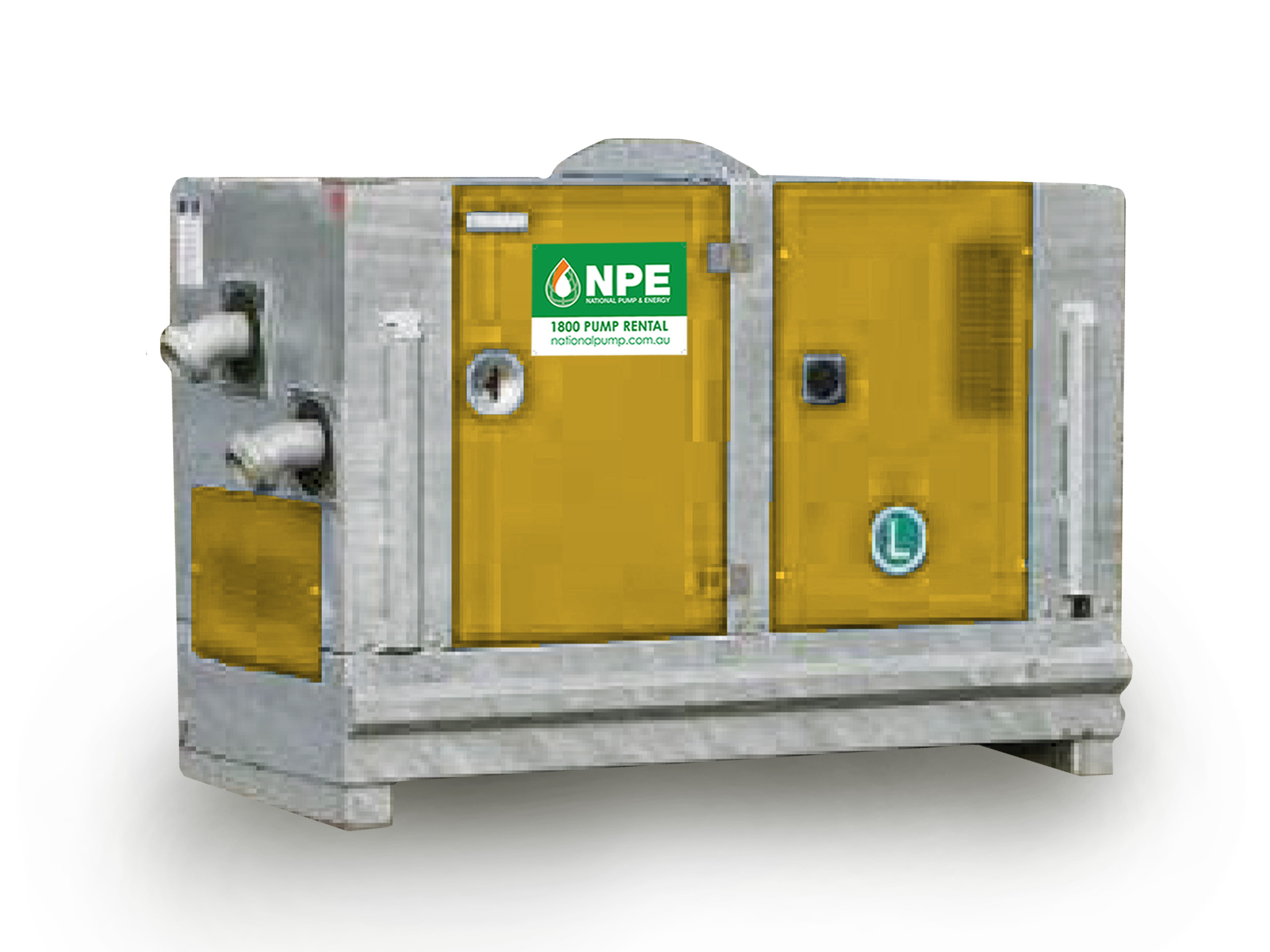

The pump and engine are enclosed in the robust galvanized “B compact” sound attenuated enclosure, which reduces noise levels below 49 dB(a) at 10 m, allowing operation near noise sensitive areas such as hospitals and residential neighborhoods.
The PT series are self-priming, positive displacement piston pumps. Because of its efficient design, the pump is capable of operating approximately 1 week using only 19 liter of fuel per day, dramatically reducing fuel costs.
KEY FEATURES
- Pump can be placed across on a truck, saves transport costs
- Simple exchange cylinder liners, saves maintenance costs
- Simple lifting hook - also for the stackable pump executions
- Special exhauster, super silent to be used in any circumstances and neighbourhood
- Pump casing provided with cleaning covers, for simple and easy cleaning of cylinder liners and changing gland packaging Low weight compared to other super silent pump units
| Pump Specification Data | |
|---|---|
| Pump Specification Data Type | PT90 HA B Compact |
| Pump Specification Data Design | Direct Drive Design® |
| Pump Specification Data Max Flow | 90M3/H (396 USGPM) |
| Pump Specification Data Max Pressure | 20MWC |
| Pump Specification Data Max Suction Lift | 20MWC |
| Pump Specification Data Fuel Consumption | Max 1.5L/H |
| Pump Specification Data Sound Level | 49dB(A) at 10M |
| Pump Specification Data Weight | 1855KG |
| Pump Technical Specifications | |
|---|---|
| Pump Technical Specifications Diesel Motor | Hatz 1D81Z |
| Pump Technical Specifications Cooling | Air Cooled |
| Pump Technical Specifications Cylinder | 1 Cylinder |
| Pump Technical Specifications Motor Power | 7.2kW at 1700RPM |
| Pump Technical Specifications Oil Sump | 3.5L |
| Pump Technical Specifications Start | Electric 12V incl. Hour Counter |
| Pump Technical Specifications Fuel Consumption | Max 1.5L/H |
| Pump Technical Specifications Fuel Tank | 180L / PE Material |
| Pump Technical Specifications Autonomy | Min. 120HRS |
| Pump Technical Specifications Assembly | In a Galvanized Canopy, Lockable Doors, Stackable, Oil-Water Separator |
| Pump Technical Specifications Noise Level | 49 dBa at 10m |
| Pump Materials | |
|---|---|
| Pump Materials Pump Casing | Cast Iron |
| Pump Materials Cylinder Liner | Stainless Steel AISI 316 |
| Pump Materials Piston Cup | Leather |
| Pump Materials Piston Rod | Stainless Steel AISI 316 |
| Pump Materials Shaft Seal | Gland Packaging |
| Pump Materials O-Rings | NBR |
