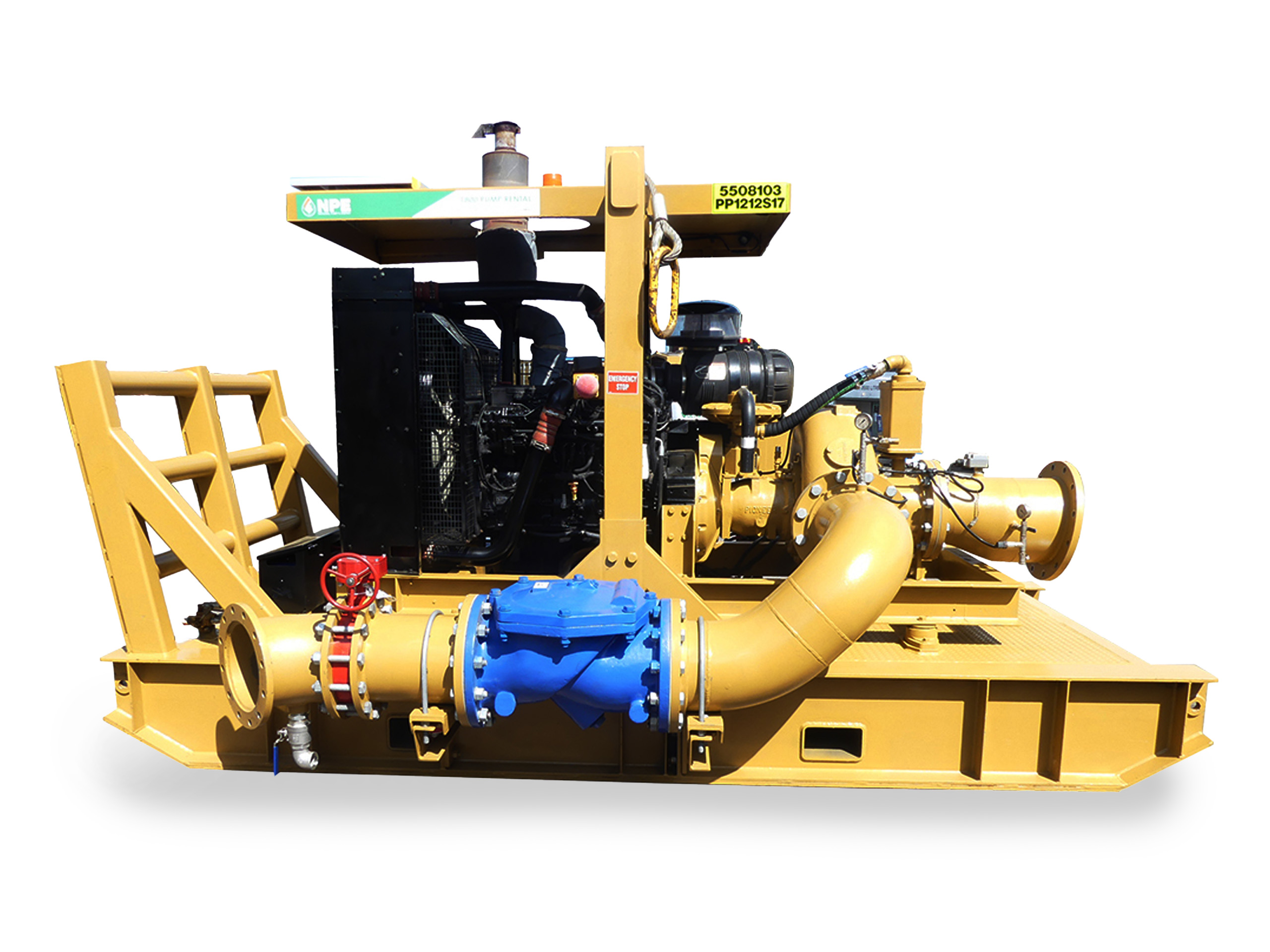

Designed to run over a broad range of performance while delivering outstanding suction lift, the PP1212S17 is the solid choice. The rugged construction and modular design provide proven reliability and flexibility in the most demanding applications.

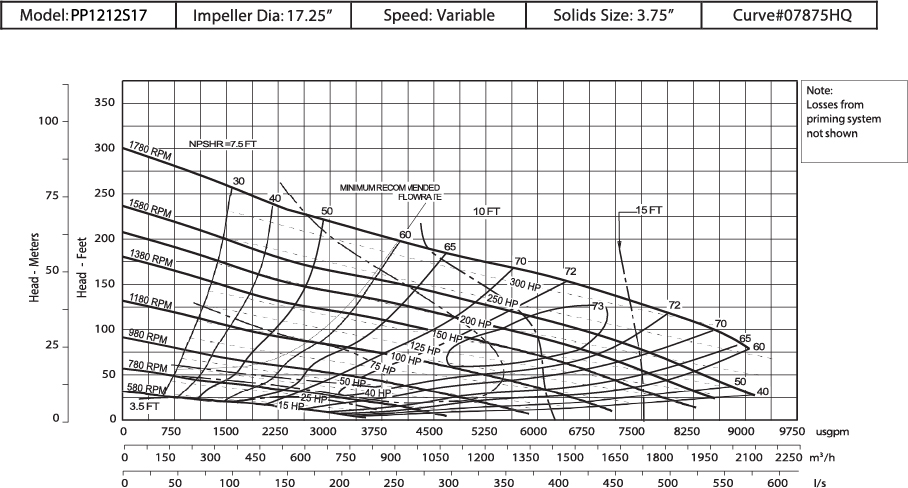

PUMP PERFORMANCE CURVE
| Performance | |
|---|---|
| Performance Size (IN) | 12" x 12" |
| Performance Size (MM) | 305x305MM |
| Performance Max Flow (M3/H) | 2070M3/H |
| Performance Max Flow (USGPM) | 9000 USGPM |
| Performance Max Flow (L/S) | 5700L/S |
| Performance Max Head (M/FT) | 90M / 300FT |
| Performance Flow at BEP (M3/H) | 1630M3/H |
| Performance Flow at BEP (USGPM) | 7100USGPM |
| Performance Flow at BEP (M3/H) | 450L/S |
| Performance Efficiency at BEP | 72% |
| Performance Max Solids Handling (IN/MM) | 3.7" / 95MM |
| Performance Max Operating Speed | 1180RPM |
| Performance Suction Connection | 12" 150 ANSI Flanges |
| Performance Delivery Connection | 12" 150 ANSI Flanges |
| Performance Lubrication | Oil STD (Grease Optional) |
| Performance Fasteners | Imperial |
| | UltraPrime™ Priming System |
|---|---|
| Priming System | UltraPrime™ Priming System Mechanically Driven Diaphragm Style Vacuum Pump |
| Air Removal Capability | UltraPrime™ Priming System 50 CFM |
| Priming Chamber | UltraPrime™ Priming System Single chamber with positive sealing air separation PosiValve™ with stainless steel float ball & linkage. |
| Discharge Check Valve | UltraPrime™ Priming System Swing Style - ductile iron with Buna-n Disc |
| | Other Specifications |
|---|---|
| Mechanical Seal | Other Specifications Single seal w/ tungsten carbide vs. silicon carbide seal faces, Viton® elastomers, 300 Solids Handling, Max Operating Speed, Max 3.75" 95 mm 1800 rpm series stainless steel hardware and spring, designed for indefinite dry running |
| Pump end Bearing | Other Specifications Roller |
| Drive End Bearing | Other Specifications Double Row Angular Contact |
| Shaft | Other Specifications ASTM A630 17-4PH Cond HT1150 SS |
| Construction Materials Options | |||
|---|---|---|---|
| Construction Materials Options Standard Construction | Standard Construction | Optional Constructions | Optional Constructions |
| Construction Materials Options Impeller | Ductile Iron | CD4MCu | 316 SS |
| Construction Materials Options Wear Ring | ASTM A48 Class 40 Gray Iron | 316 SS | 316 SS |
| Construction Materials Options Suction Cover | ASTM A536 65-45-12 | CD4MCu | 316 SS |
| Construction Materials Options Volute | ASTM A536 65-45-12 | CD4MCu | 316 SS |
| Construction Materials Options Brac-plate | ASTM A536 65-45-12 | CD4MCu | 316 SS |
| Construction Materials Options Back-plate | ASTM A536 65-45-12 | CD4MCu | 316 SS |
