National Pump & Energy offers a range of pumps developed and manufactured to meet Australian and European Standards and are available for hire and sale Australia wide.

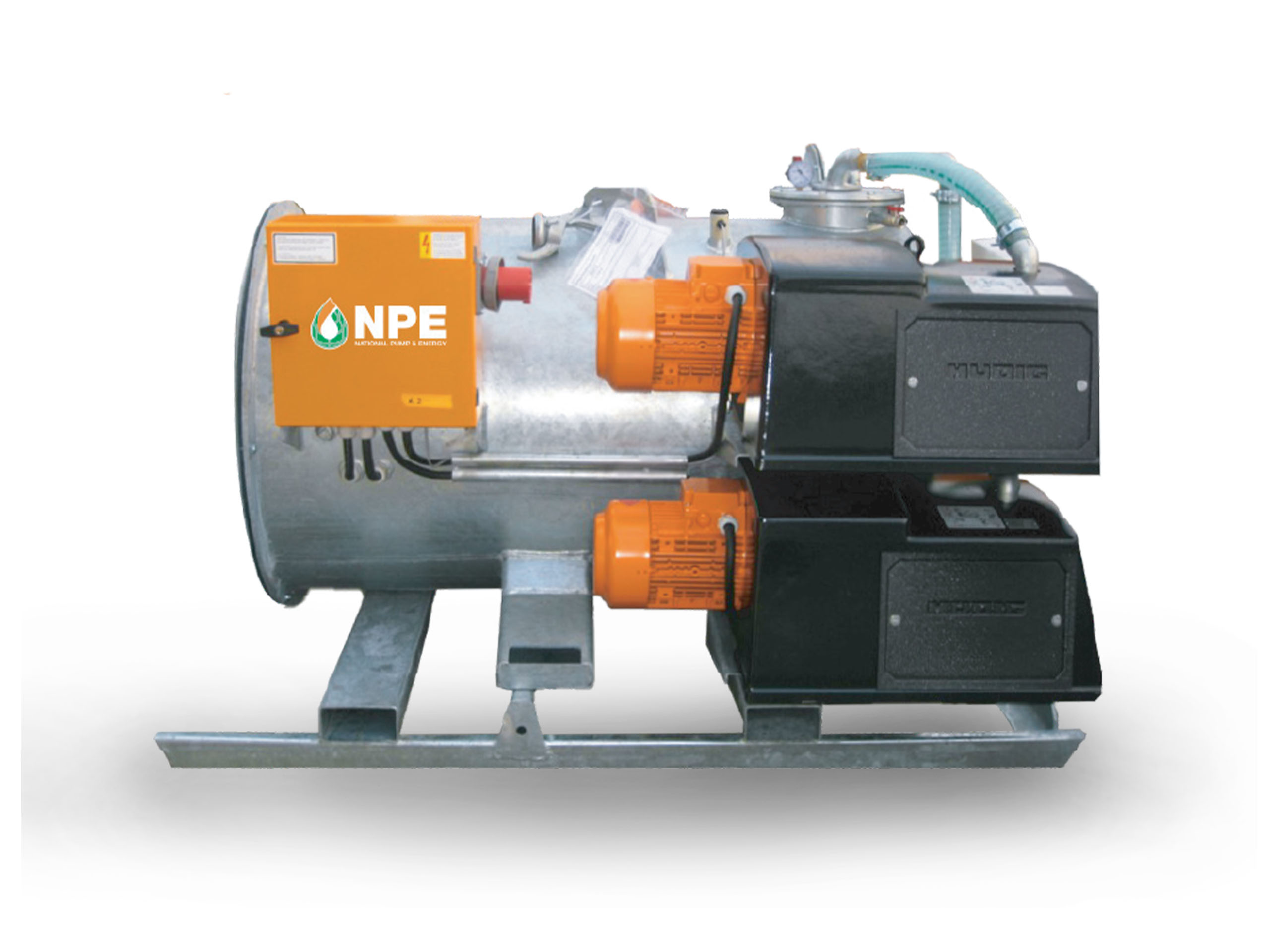

The skid mounted Electric Vacuum Unit is ideal for general industry, municipalities and conveying of ground water. As a compact portable unit this is a highly versatile solution and is available for immediate hire.
KEY FEATURES
- Skid mounted
- Electric driven water and vacuum pump
- Large volume vessel separates water/air mixture
- Water discharged by a submersible pump
- Vacuum built up by a dry running rotation vacuum generator which is almost maintenance free
- Noise level of only 52 dB(A)

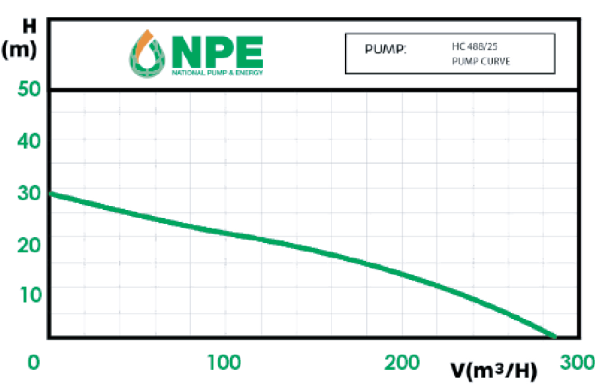

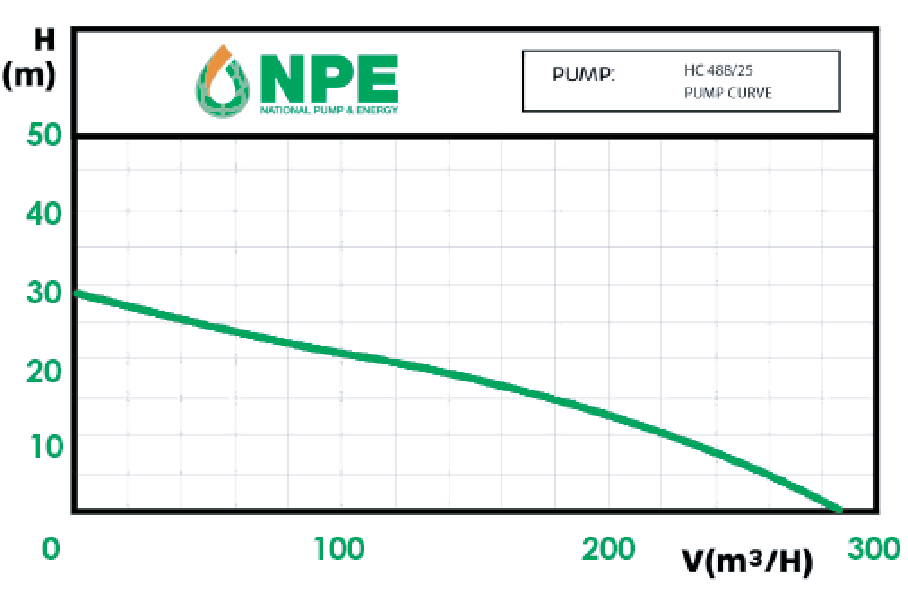

PUMP PERFORMANCE CURVE
| General Specifications | |
|---|---|
| General Specifications Make | HC488/25 |
| General Specifications Dimensions (mm) | 1895L x 1650W x 1400H |
| General Specifications Sound Level | 52dB(A) |
| General Specifications Max. Flow | 80L/S |
| General Specifications Head | 28m |
| General Specifications Connections | 150mm |
| General Specifications Solid Handling | 10mm |
| Motor Specifications | |
|---|---|
| Motor Specifications Poewr Input (PN) | 14.9kW |
| Motor Specifications Power Input (Pmax) | 18.7kW |
| Motor Specifications | 400V / 3 Phase |
